| EV cable |
| 電動汽車充電電纜 EV07EE-H、 EV07EEC4E-H |
|
產品說明 額度電壓：450/750V 額度溫度：-40℃至+90℃ 導體使用溫度：+120℃ 使用彎曲半徑：≥8D 阻燃測試：IEC60332-1 煙密度：IEC61034,EN50268-2 鹵酸氣體釋放量：IEC670754-1,EN50267-2-1 耐熱，耐寒，耐磨，抗紫外線 具有較高的機械強度，防水，耐油 |
PRODUCT DESCRIPTION The rated voltage: 450/750V Rated temperature: -40℃至+90℃ Max.conductor temperature: +120℃ Bebding radius: ≥8D Retarding tese: IEC60332-1 Smoke density: IEC61034,EN50268-2 Stewed acid gas release quantity: IEC670754-1,EN50267-2-1 Heat, cold, wear-resisting to ozone ultraviolet light Higher the mechanical strength, waterproof, oil |
 |
|
印字 MARKING TUV 2 PfG 1908 EV07EE-H、EV07EEC4E-H ( ) mm² + ( ) mm² 450/750 CHANG PAINUO ELECTRON CO.,LTD. |
| 產品介紹： |
|

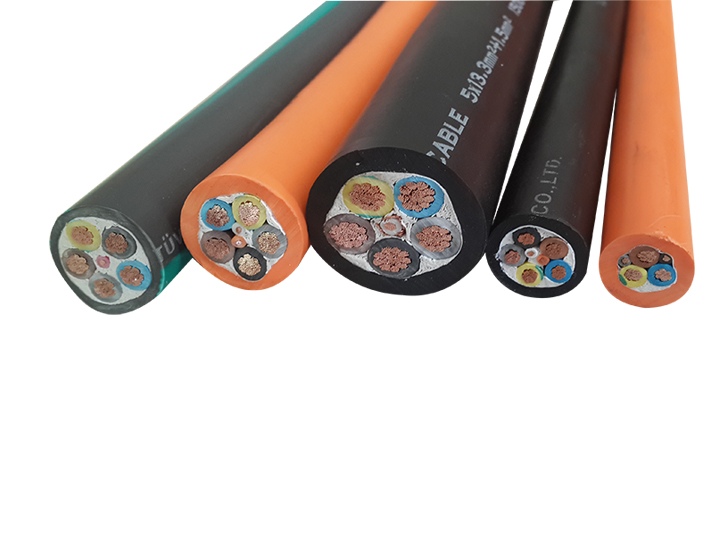

電動汽車充電電纜是一種用于電動汽車與充電樁或電源插座之間的連接軟電纜，無氧銅導體保證了導電效果，TPE絕緣材料具有柔軟，強度高，護套采用高性能TPE 其有耐氣候，耐高.低溫，耐摩擦等特征。 該電纜：柔軟，有彈性，耐彎曲，低溫狀態下不發硬。 |
| Product Introduction |
|
"EV cable is a kind of flexible cable to connect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, ect. The cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908/05.12 certification." |

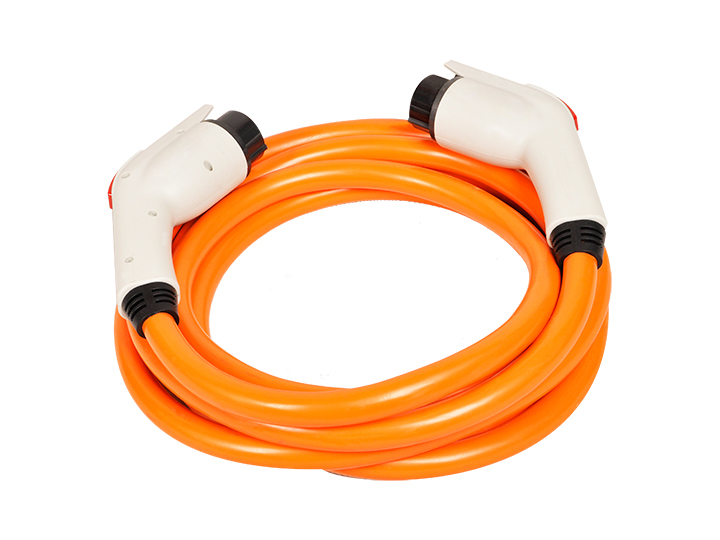

 充電連接線 |
 充電連接線 |
 充電連接線 |

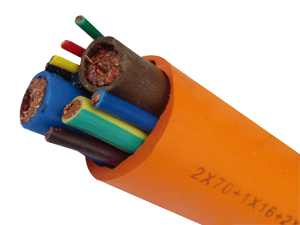

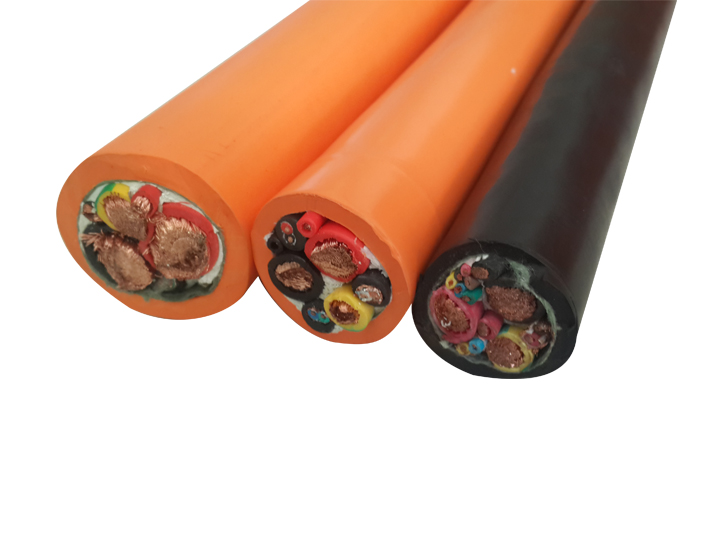

 直流充電電纜（快充） |

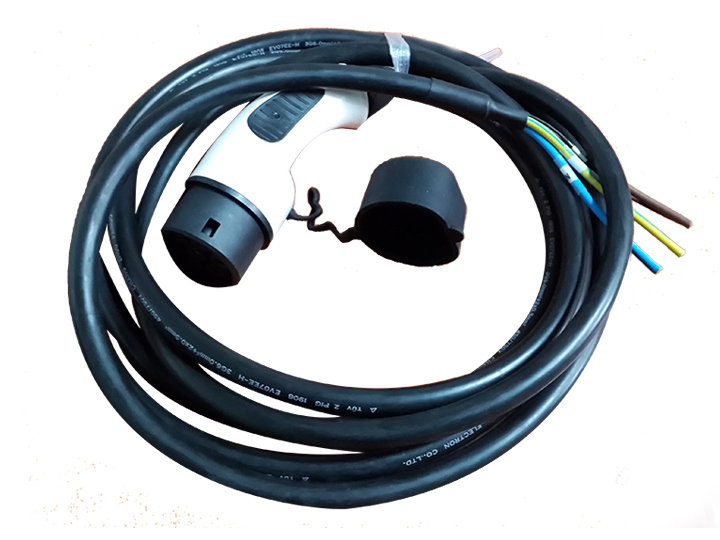

 交流充電電纜（慢充） |
 直流快充 |
